1 String 1000V PV Combiner Box 1 in 1 Out, Single String 40A DC Circuit Breaker with Solar Disconnect Function, Surge Protection, IP65 Weather-Resistant Enclosure
4.9 (144 items)
Limited Time SaleUS$27.59 cheaper than the new price!!
Free cash-on-delivery fees for purchases over $99
Product details
| Management number | 215629172 | Release Date | 2026/04/12 | List Price | US$18.40 | Model Number | 215629172 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- 【Durable Outdoor Enclosure】This 1000V PV combiner box (1 in 1 out) features a rugged PC+ABS enclosure with flame-retardant properties, designed for long-term outdoor use. The housing resists UV exposure, high and low temperatures, and aging, supporting reliable performance in harsh solar installation environments.
- 【Enhanced Weather Protection】This PV combiner box features a sealed rubber gasket and a weather-resistant enclosure rated IP65, with IP68-rated connectors for added protection. The design helps prevent water and dust ingress, supporting stable operation in rain, snow, and outdoor solar environments.

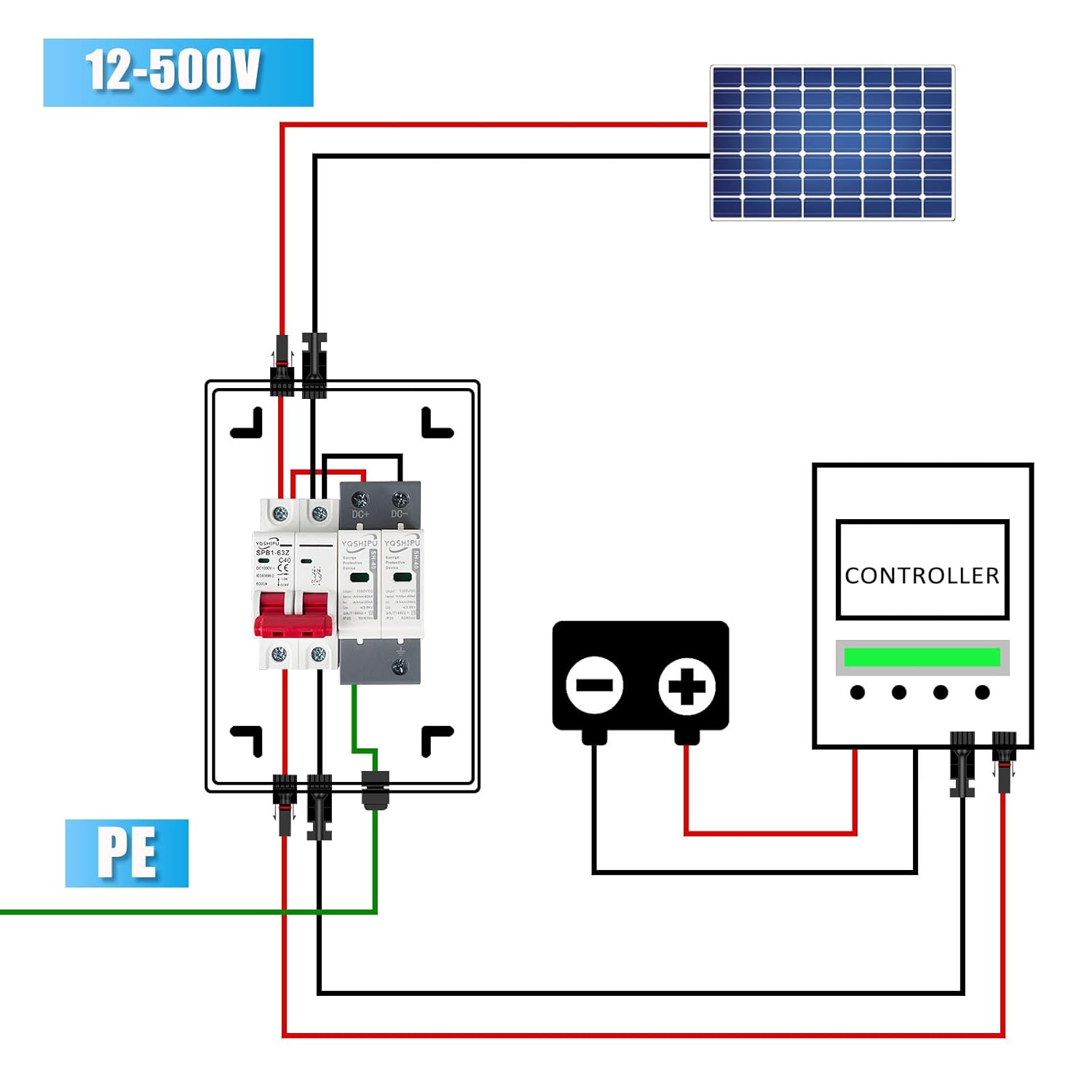

- 【Simplified Installation】This PV combiner box comes with pre-installed solar panel connectors for straightforward installation. The integrated DC circuit breaker and surge protection components are factory assembled, reducing on-site wiring and helping installers save time during solar system setup.
- 【Visual Status Monitoring】The transparent cover allows users to visually inspect the DC circuit breaker and surge protection status without opening the enclosure. A visible indicator on the surge protection module helps identify when replacement may be required after a surge event.
- 【Electrical Ratings & Included Accessories】Equipped with a 40A DC circuit breaker rated for 1000V (2P) and a DC surge protection module rated 20–40kA at 1000V (2P). The unit features flame-retardant component enclosures and includes solar panel connectors, mounting hardware, an installation tool, and a grounding wire for standard setup.
| Brand Name | LyteSolar |
|---|---|
| Phase Type | single-phase or three-phase |
| Unit Count | 1.0 Count |
| Manufacturer | LyteSolar |
| Material Type | Acrylonitrile Butadiene Styrene (ABS), Polycarbonate (PC) |
| Item Type Name | disconnect Switch |
| Maximum Current | 40 Amps |
| Number Of Circuits | 2 |
| Included Components | Circuit Breaker&Surge Protector |
